Airport Reconstruction and Expansion Supporting Project (Phase I) Navigation Workshop Steel Space Frame and Cladding System Project

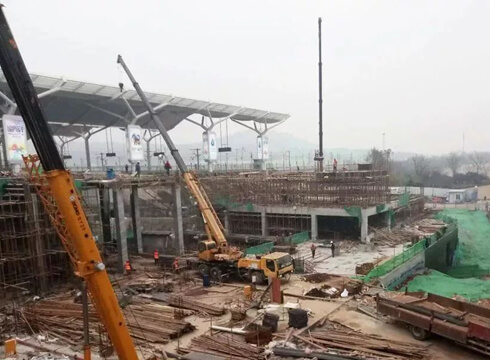

High-speed railway station train station design 6
steel structure  workshop
steel structure  workshop
steel structure  workshop
  • Span 186.2 m
  • Length 51.6 m
  • Area 9,608 ㎡

Advantage

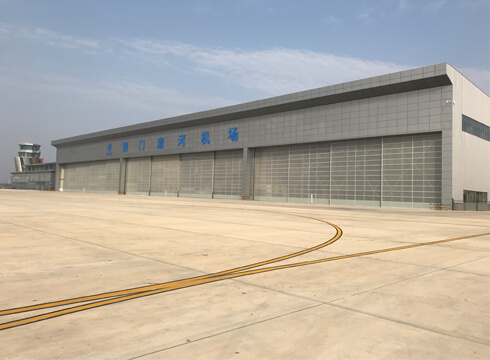

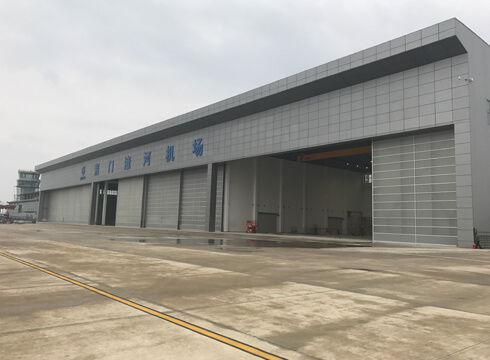

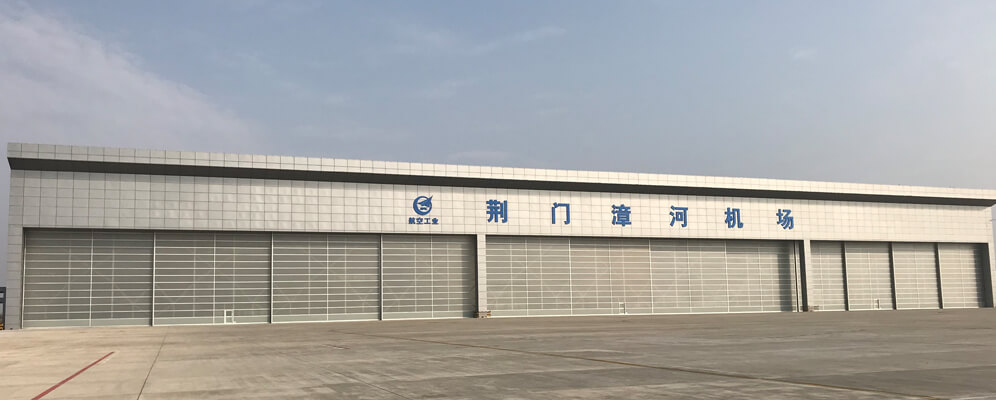

Steel Structure Jingmen Zhanghe Airport Project
  • 80% of production can be finished at factory

  • Easy and fast installation

  • Cost-effective

  • High security

  • Roof and side enclosures can be installed on the ground and lifted successfully once

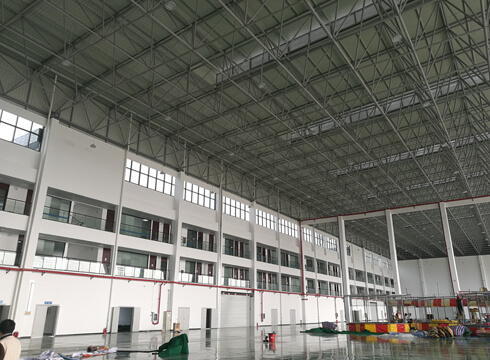

This project adopted square quadrangle with space frame bolt ball node and bottle chord support. The  airport has been a larger general airport in China.
