Gas Station Canopy Structure Design and Installation Space Frame Engineering Case

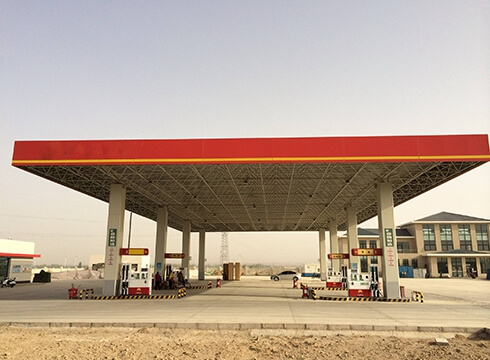

Gas Station Canopy Structure Design3

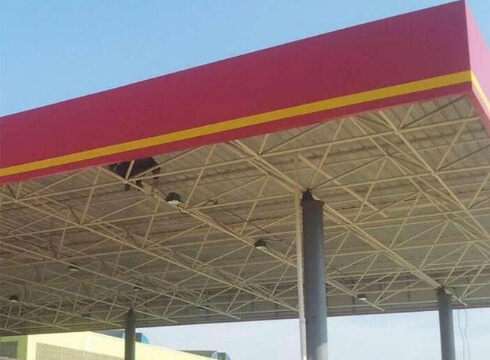

Gas Station Canopy Structure Design1

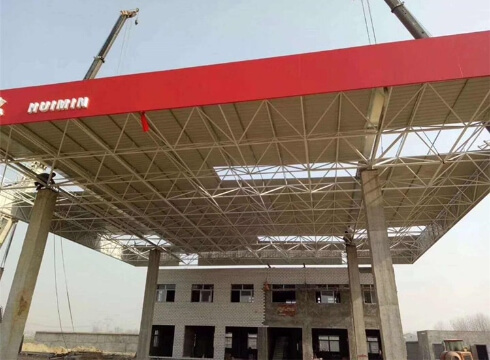

Gas Station Canopy Structure Design2

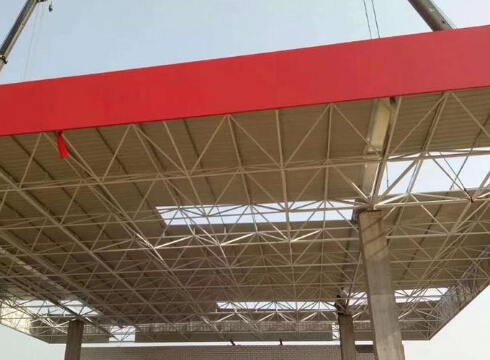

Gas Station Canopy Structure Design0
  • Dimension: L50m*W15m*H9m
  • Design: AISC
  • Type: Bolted ball joint space frame
  • Surface treatment: Paint
  • Wind load: 0.35
  • Earthquake: 8
  • Roof cover: Color plate
  • Durable: 50 years

Advantage

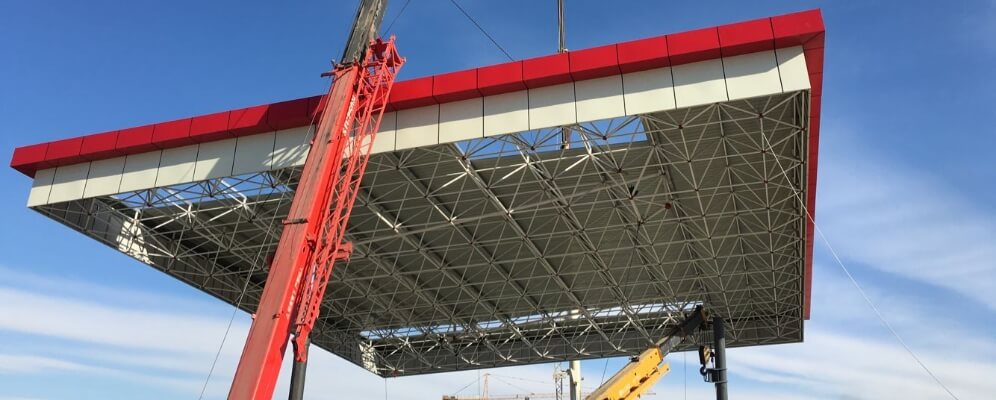

Gas Station Canopy Structure Installation
  • 80% of production can be finished at factory

  • Easy and fast installation

  • Cost-effective

  • High security

  • Roof and side enclosures can be installed on the ground and lifted successfully once

What conditions need to be met if the space frame structure is used to install the gas station canopy? I mentioned it in the previous article(4 conditions to be met for the installation of gas station with space frame structure), you can go to find out, I believe it will help you. If you have the idea of building a gas station now, I think you leave a message below, and we will have professional engineers to connect with you to help you effectively and save you a lot of time.
