High Standard Steel Space Frame Plant Construction Project

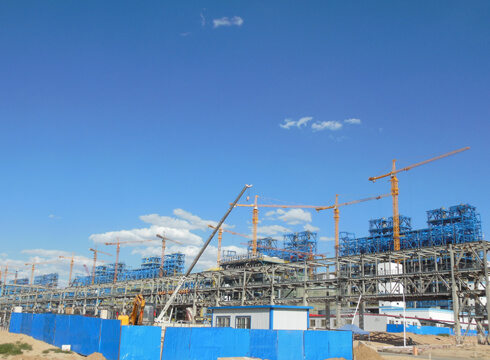

Detailed drawing of high standard steel structure workshop 0
Detailed drawing of high standard steel structure workshop 1

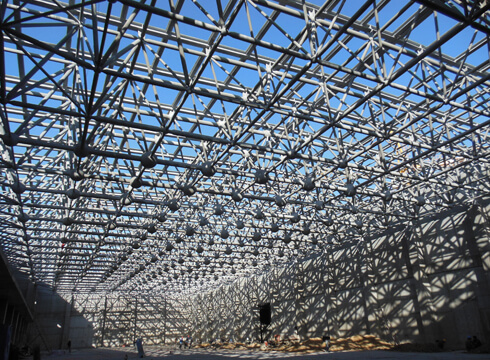

Detailed drawing of high standard steel structure workshop 3

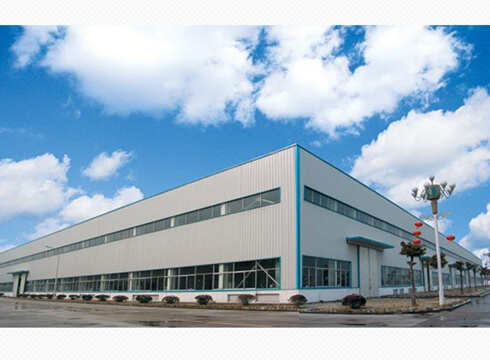

Detailed drawing of high standard steel structure workshop 2
  • Area 53,788.29㎡
  • Main yard 180*138m
  • intercolumniation 12m
  • Height 20.4m

Advantage

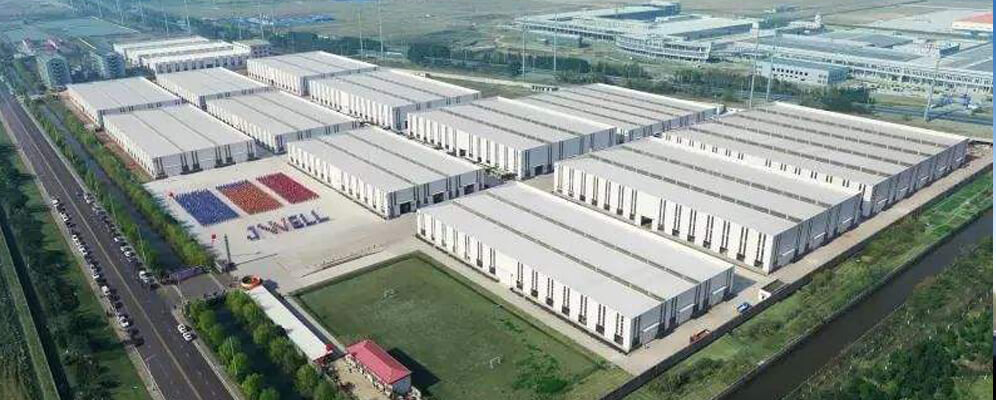

Advantages of high standard steel structure workshop
  • 80% of production can be finished at factory

  • Easy and fast installation

  • Cost-effective

  • High security

  • Roof and side enclosures can be installed on the ground and lifted successfully once

This project located is total construction area of 53,788.29m2. The main warehouse is made of steel structure, the building dimension is 180m*138m, construction area is 50,518.97m2, two floors of the main body and three floors in part. The first floor is steel frame structure, the second floor is steel structure. The distance between the columns is 12m, and the elevation of the top wall is 20.40m.
