Large Span Barrel Coal StorageSpace Frame

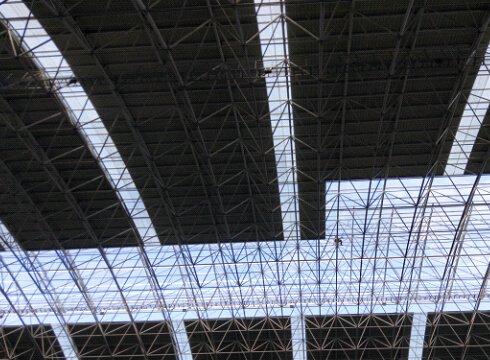

Detail drawing of coal storage shell design 0

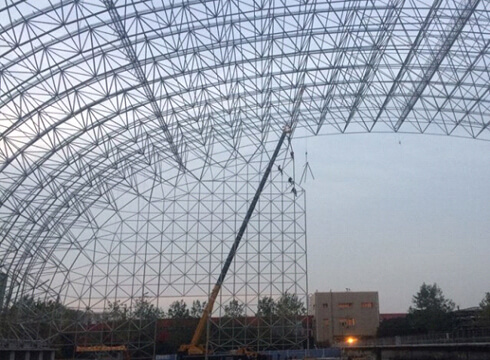

Detail drawing of coal storage shell design
Detail drawing of coal storage shell design 2
Detail drawing of coal storage shell design 1
  • Width 564.8 m
  • Span 137 m
  • Weight 11,932 t
  • Height 55.6 m

Advantage

Large Span Space Frame Roof
  • 80% of production can be finished at factory

  • Easy and fast installation

  • Cost-effective

  • High security

  • Roof and side enclosures can be installed on the ground and lifted successfully once

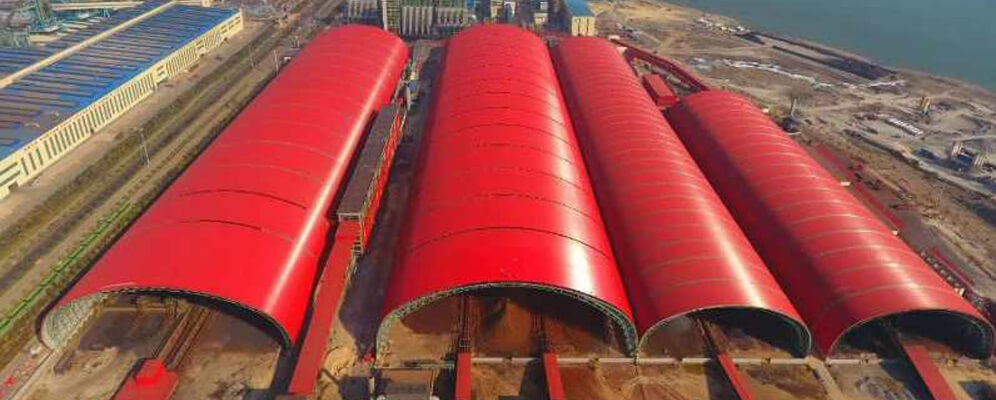

Large span space frame project was the second main structure space frame in China. It was 564.8 m in width and 137 m in span. The total weight of the space frame reached 11,932 tons, using advanced push slip construction technology, the whole process of sliding more than 1500 meters.
