Middle School Indoor Stadium Pipe Truss Project

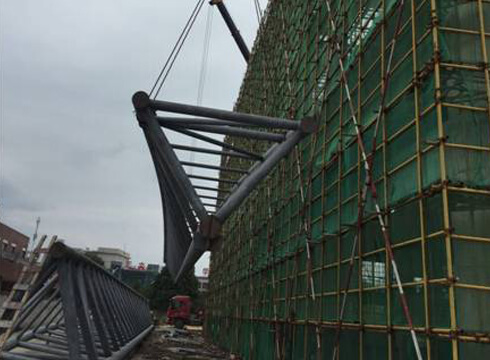

steel structure

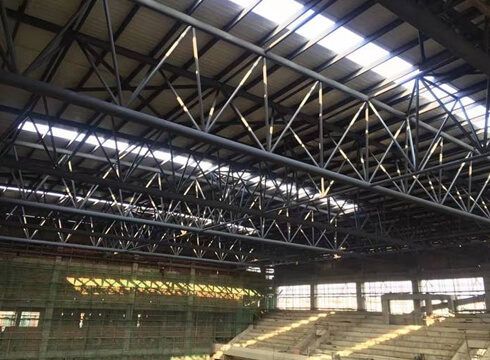

stadium roof

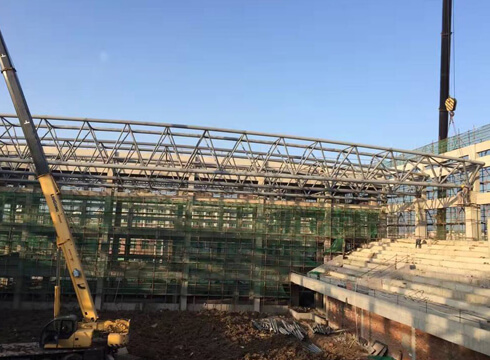

stadium roof

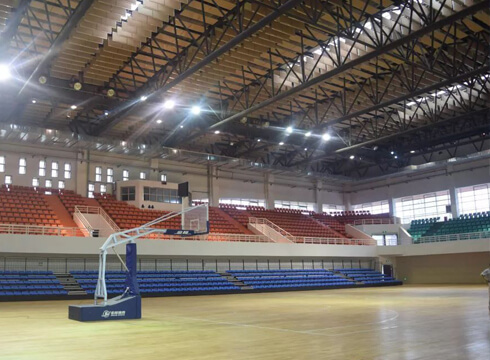

Chaohu No. 1 Middle School Indoor Gymnasium Design Details
  • Area 9,133.7㎡
  • Completion date 2017.11
  • Height 15m
  • Span 80m

Advantage

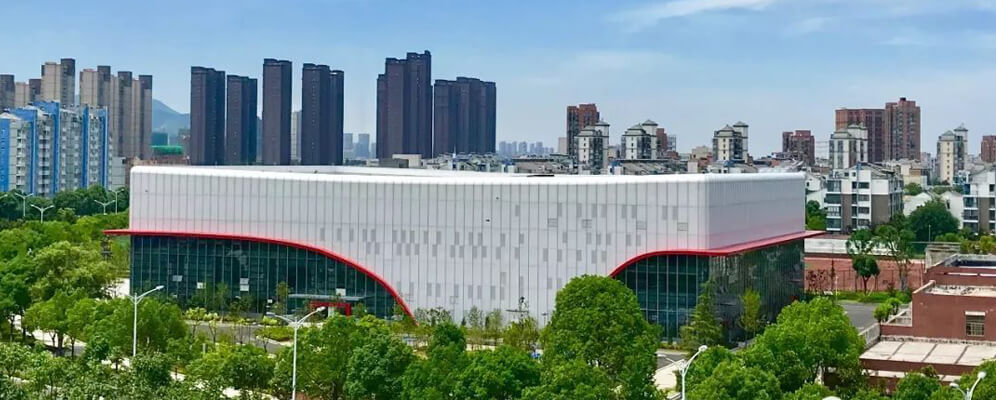

Chaohu No. 1 Middle School Indoor Gymnasium Design Advantages
  • 80% of production can be finished at factory

  • Easy and fast installation

  • Cost-effective

  • High security

  • Roof and side enclosures can be installed on the ground and lifted successfully once

The design scale refers to the Grade B gymnasium construction standard, with a total seating capacity of 3004 seats, including 6 seats for the disabled, 30 seats for the podium, 2188 seats for fixed seats, 780 seats for movable bleachers, with a construction area of 9133.7 square meters and 4 floors, including basketball, badminton, table tennis, volleyball and other arenas and dance training rooms. The quality of each division of the project is qualified, and all functional test results are qualified, which is in line with the design and relevant specifications.
