Sun Palace bolt-ball node space frame Project

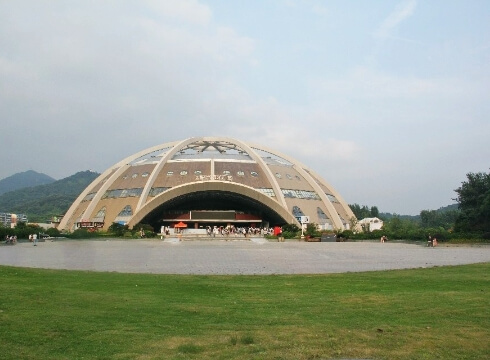

Steel dome building1
space frame design

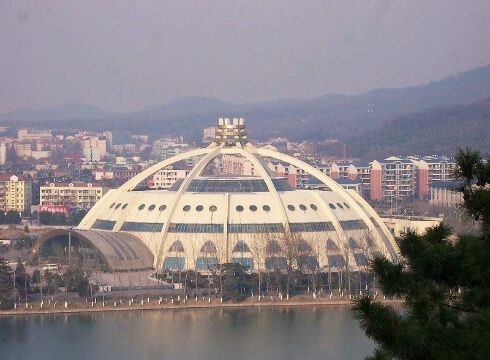

Steel dome building3

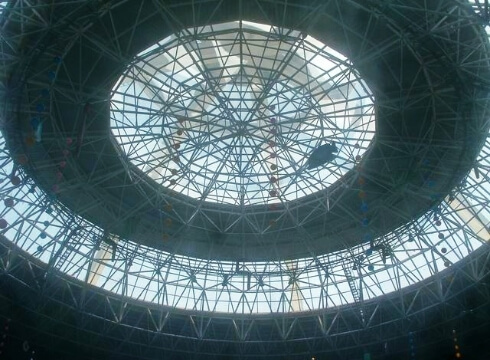

Steel dome building2
  • Span 80 m
  • Thickness 7.2 m
  • Area 5,018㎡
  • Height 28.5 m

Advantage

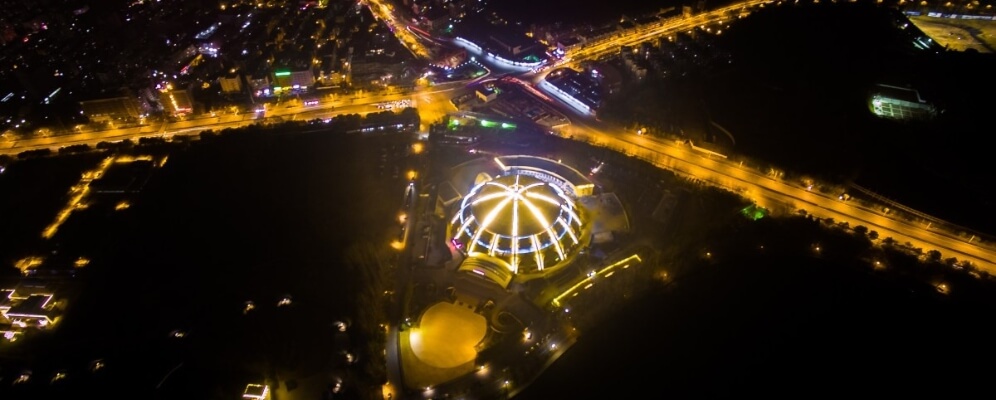

Steel dome building0
  • 80% of production can be finished at factory

  • Easy and fast installation

  • Cost-effective

  • High security

  • Roof and side enclosures can be installed on the ground and lifted successfully once

The structure is a four-angle cone bolt-ball node net frame with a total height of 28.5 m. The lowest elevation of the grid is 21.3 meters, the highest elevation is 28.5 meters, and the structure of the grid has three layers.
