The architectural characteristics of steel structure point-supported glass curtain wall, in the construction project need to set up pillars, support structure, including beams and columns, and hollow trusses and so on.
Curtain wall designers, the design process needs to take into account the external load, as well as the glass self-weight, through a reasonable design, the shape of the structure to be enriched, must be in the form of dry with the tendon, for the whole system to accept the design of the support system, transverse beams and columns in the structure of the point of support, the design of the construction programme of the glass curtain wall, and therefore to strengthen the support structure of the part of the design, to meet the structural load-bearing requirements are Very critical. Through effective design, the strength of the main structure is improved.

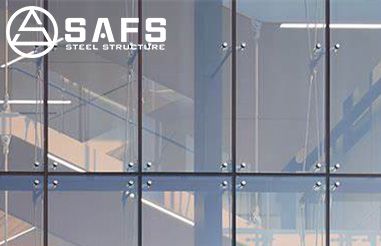

Steel structure point support glass curtain wall: it is composed of point support with structural point support, support structure, steel structure point support, glass class support point and so on. Glass panel is its main component, and then the support structure and point support structure constitutes the overall glass curtain wall, to support the structure to be divided in accordance with the form of glass curtain wall support, respectively, can be dry support glass curtain wall, glass class support points, but also in accordance with the form of support can be divided into four or six and so on multi-point support. Can also be divided into drag plate support and plywood support. In the construction process, point support glass curtain wall has been widely used, and can guarantee the quality of construction according to quality and quantity, its construction technology for comprehensive analysis, including the following:

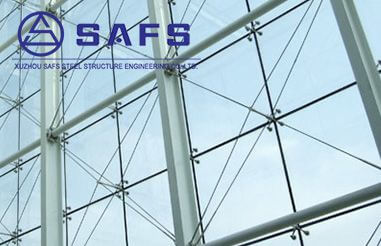

Pillars need to be set up in the construction project to support the structure, including beams and columns, as well as hollow web trusses and so on. Through reasonable design, the modelling of the structure is enriched, so that the combination of knot forms can be diversified, and the common load bearing of steel cables and glass is realised. On the façade of the independent building, the current structure takes the steel structure point support as the main support. Whether it is a new reconstruction or expansion, the building height is required to be below 150 metres, with seismic defence is crack resistance and other functions. In carrying out the installation of glass curtain wall of industrial buildings, for different forms of point-supported glass curtain wall, take into account the different design of its load-bearing structure, combined with the actual construction of the project, the structural design and construction.
